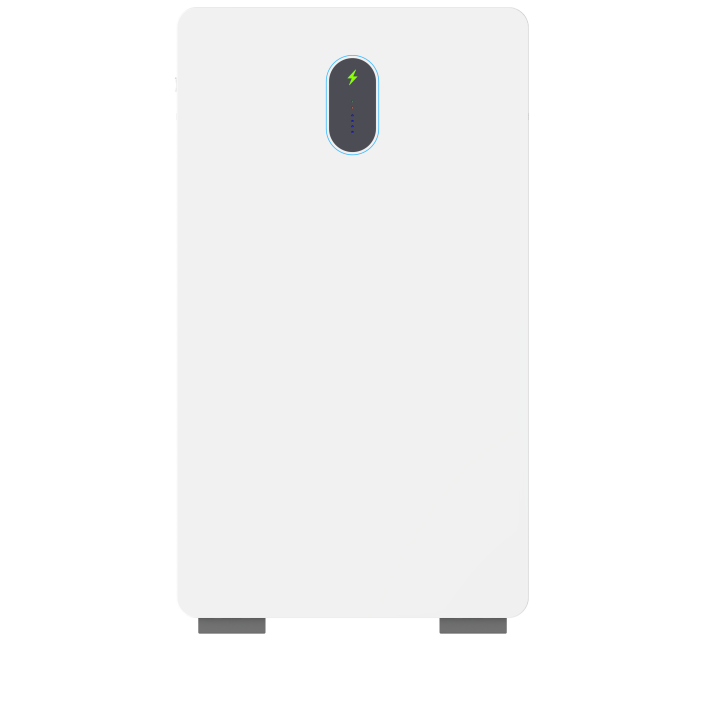

SE 16.0B-L
Features
- Lithium Iron Phosphate (LFP) cells, safe and reliable
- Support BMS communication & remote BMS firmware upgrade
- Support expandable parallel connection for higher capacity and power
- Built-in fire protection module for enhanced safety
- IP54 protection rating
- Built-in bluetooth communication, optional Wi-Fi communication
- Optional removable wheels for easy movement and installation
| Model | SE 16.0B-L |
| Battery Type | LiFeP04 |
| Nominal Energy | 16.07kWh |
| Nominal Capacity | 314Ah |
| Nominal. Continuous Charge/Discharge Current | 157A/157A |
| Max. Charge/Discharge Current | 160A/200A |
| Nominal Voltage | 51.2V |
| Operating Voltage | 43.2V-57.6V |
| Cycle Life | 6000 Cycles (@25℃, 0.5CC/0.5DC, 70%SOH） |
| Dimensions（W*H*D） | 450*800*235mm |
| Weight | 111.5 kg |
| Installation | Floor Stand |
| Operating Temperature Range | Charging Temperature: 0°C~ 55 °C Discharge Temperature: -20°C~ 55 °C |
| Storage Humidity | 5%~95%RH |
| Max. Operating Altitude | 3000m |
| Ingress Protection Degree | IP54 |
| Communication Interfaces | CAN, RS485, Bluetooth, LCD/Wi-Fi (optional) |
| Certification | UN 38.3, IEC 62619, IEC 61000 |
| Warranty | 5 Years |
