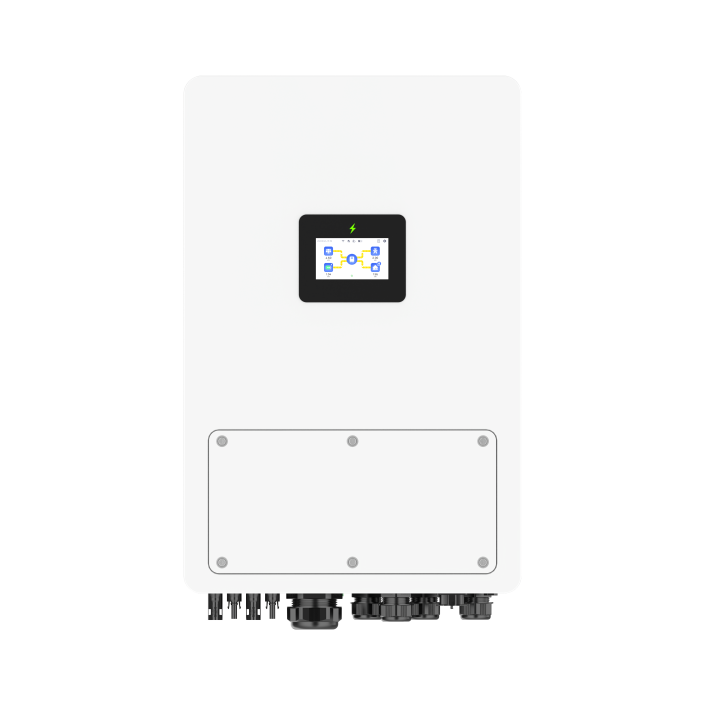

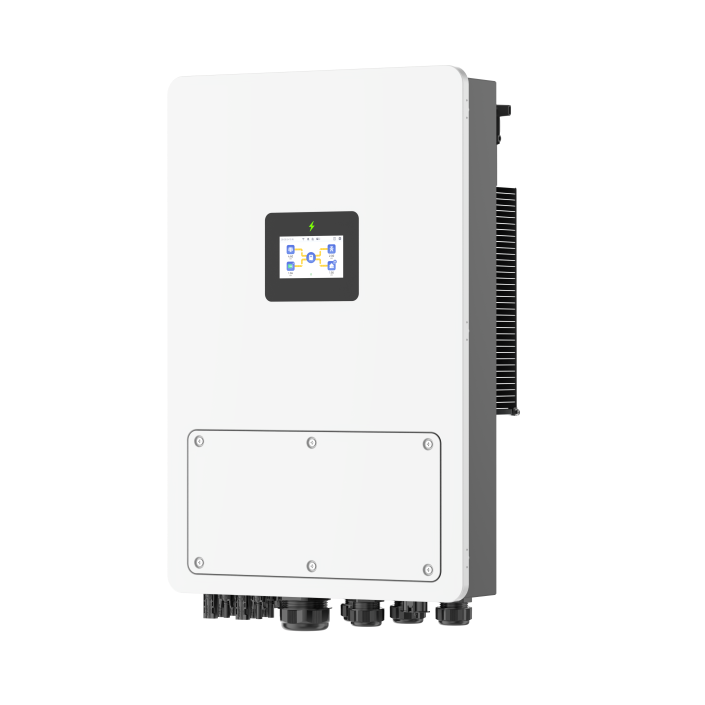

SE 8KHB-D1/LV-ECO-II, SE 10/12KHB-T1/LV-ECO-II
Features
Excellent Performance
- 200% PV oversizing, 160% PV usable power
- 3 MPPTs with 6 PV Strings, 20 A Max. Input Current per String.
- Max. battery charge/discharge current of 250A
- Max. grid passthrough current of 68.2A
Highly Flexiblility
- Support 40-60V Lithium or Lead-acid battery
- Support generator/smart load/AC coupling
- Max. 9 units parallel for on-gird and off-gird operation
- 3 inverters in parallel for three phase
Safe & Reliablility
- IP66： Indoor or outdoor installation
- Seamless transition to backup mode, for protection against power outages
- Arc-fault circuit interruption （AFCI）2.0 optional
Intelligent Maintenance
- 4.3“ LCD color touchscreen，easy to operate
- 6 time periods for battery charging/discharging
- Built-in WiFi, supporting remote monitoring and upgrade
| Model | SE 8KHB-D1/LV-ECO-II | SE 10KHB-T1/LV-ECO-II | SE 12KHB-T1/LV-ECO-II |
| Efficiency | |||
| Max. Efficiency | 97.6% | ||
| Input (PV) | |||
| Max. PV Access Power | 16,000W | 20,000W | 24,000W |
| Max. PV Usable Power | 12,800W | 16,000W | 19,200W |
| Max. PV Input Voltage | 500V | ||
| Start-up Voltage | 90V | ||
| MPPT Operating Voltage Range | 70V-450V | ||
| Max. Input Current per MPPT | 2*20A/2*20A | 2*20A/2*20A/2*20A | 2*20A/2*20A/2*20A |
| Max. Short Circuit Current per MPPT | 2*25A/2*25A | 2*25A/2*25A/2*25A | 2*25A/2*25A/2*25A |
| No. of MPP Trackers | 2 | 3 | 3 |
| No. of Strings per MPP Tracker | 2/2 | 2/2/2 | 2/2/2 |
| Input/Output (BAT) | |||
| Battery Type | Lithium-ion/Lead-acid | ||
| Nominal Battery Voltage | 48V | ||
| Battery Voltage Range | 40V-60V | ||
| Max. Charge/Discharge Current | 190A/190A | 220A/220A | 250A/250A |
| Input/Output (Grid) | |||
| Nominal AC Output Power | 8,000W | 10,000W | 12,000W |
| Max. AC Output Apparent Power | 8,800VA | 11,000VA | 13,200VA |
| Nominal AC Output Current | 36.4A/34.8A/33.3A | 45.5A/43.5A/41.7A | 54.5A/52.2A/50.0A |
| Max. AC Output Current | 40A | 50A | 60A |
| Max. Grid Passthrough Current (grid to load) | 68.2A | ||
| Nominal Voltage | 220V/230V/240V, L+N+PE | ||
| Nominal Frequency | 50Hz/60Hz | ||
| Power Factor | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | ||
| THDI | ＜3% @ R Load | ||
| Output (Back up) | |||
| Nominal AC Output Power | 8,000W | 10,000W | 12,000W |
| Max. AC Output Apparent Power | 8,800VA | 11,000VA | 13,200VA |
| Nominal AC Output Current | 36.4A/34.8A/33.3A | 45.5A/43.5A/41.7A | 54.5A/52.2A/50A |
| Max. AC Output Current | 40A | 50A | 60A |
| Peak Output Apparent Power | 200% @10s | ||
| Nominal Voltage | 220V/230V/240V, L+N+PE | ||
| Nominal Frequency | 50Hz/60Hz | ||
| Transfer Time | ＜10ms（Typical） | ||
| THDV | ＜3% @ R Load | ||
| Protection | |||
| Protection Category | Class I | ||
| PV Switch | Optional | ||
| Anti-islanding Protection | Yes | ||
| Overcurrent Protection | Yes | ||
| Overvoltage Protection | Yes | ||
| AC Short Circuit Protection | Yes | ||
| PV Reverse Polarity Protection | Yes | ||
| Surge Protection | Type III | ||
| General | |||
| Max. Operation Altitude | 4,000m (>2,000m derating) | ||
| Operating Temperature Range | -25℃~60℃ | ||
| Relative Humidity | 0~100% | ||
| Ingress Protection Degree | IP66 | ||
| Cooling Method | Smart Cooling | ||
| Mounting | Wall Bracket | ||
| Dimensions (W*H*D) | 443mm*679mm*210mm | ||
| Weight | 29 kg | 31.1 kg | |
| HMI & COM | |||
| Display | LED+LCD | ||
| Communication Interfaces | RS485/CAN (for BMS), RS485, CAN（for parallel), 1*DO, 1*DI , Wi-Fi, LAN(Optional) | ||
| Certification | |||
| Safety | IEC/EN 62109-1/-2 | ||
| EMC | IEC/EN 61000-6-1/2/3/4，IEC/EN 62920 | ||
| Grid | IEC 61727/62116, IEC 61683 | ||
| Warranty | 5 Years | ||
