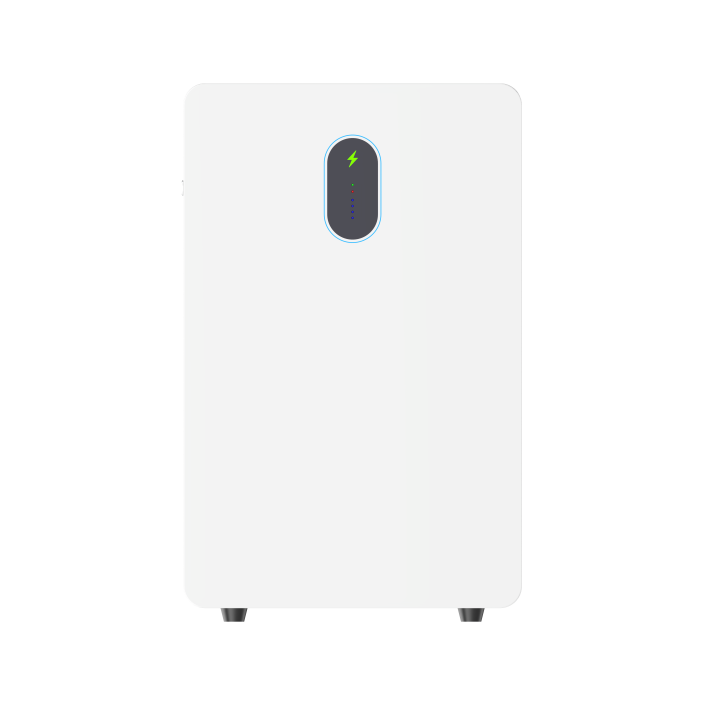

SE 5.1B-L
Features
- Lithium Iron Phosphate (LFP) cells, safe and reliable
- Support BMS communication & remote BMS firmware upgrade
- Support expandable parallel connection for higher capacity and power
- Built-in fire protection module for enhanced safety
- IP54 protection rating
- Built-in bluetooth communication, optional Wi-Fi communication
| Model | SE 5.1B-L |
| Battery Type | LiFeP04 |
| Nominal Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Nominal. Continuous Charge/Discharge Current | 60A/60A |
| Max. Charge/Discharge Current | 100A/100A |
| Nominal Voltage | 51.2V |
| Operating Voltage | 43.2V-57.6V |
| Cycle Life | 6000 Cycles (@25℃, 0.5C, 70%SOH） |
| Dimensions（W*H*D） | 400*620*160mm |
| Net Weight | 45 kg |
| Installation | Floor Stand or Wall Bracket |
| Operating Temperature Range | Charging Temperature: 0°C~ 55 °C Discharge Temperature: -20°C~ 60 °C |
| Storage Humidity | 5%~95%RH |
| Max. Operating Altitude | 3000m |
| Ingress Protection Degree | IP54 |
| Communication Interfaces | CAN, RS485, Bluetooth, LCD/Wi-Fi (optional) |
| Certification | UN 38.3, IEC 61000, IEC 62619 |
| Energy Throughput | 8 MWh |
| Warranty | 5 Years |
